Products - Inverters

Scan Center is a reputable suppliers of quality solar panels, batteries & power inverters. Scan Center has an experienced team of electricians that can assist you to install your solar panels whether for commercial, business or home applications.

Save on electrical bills with solar panel solutions - speak to the professionals at Scan Center today!

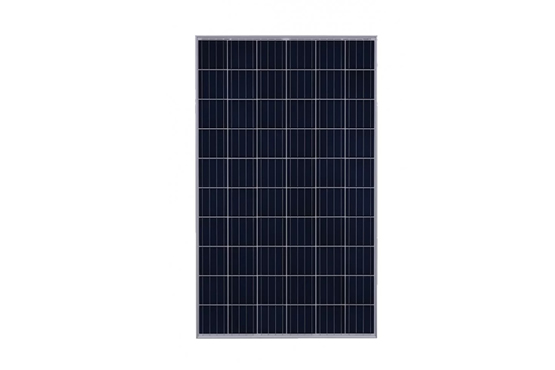

JA SOLAR 275W Poly 5BB Cypress

Weight:18 kg
Rated Power:275 W
Length:1,650mm
Width:991 mm
Depth:35 mm
VMPP:31.34 VIMPP:8.77 AVoc:38.38 V
Temp. Coefficient (Mpp):-0.41 %
Clamp position on panel:Long and short side
Connector Type:MC4
Efficiency:16.8 %
Pallet Size:OversizedÂ

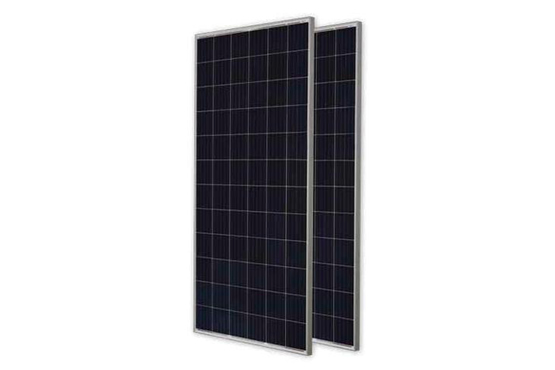

JA Solar 335W Poly Large Wafer

Panels - Polycrystalline
Rating: 335W
Efficiency: 17%
Width: 996mm
Height: 1,979mm
Weight:22.5 kg
Rated Power:335 W
Length:1,979 mm
Width:996 mm
Depth:40 mm
VMPP:37.45 VIMPP:8.91 AVoc:46.39 V
Temp. Coefficient (Mpp):0.4 %
Clamp position on panel:Long and short side
Connector Type:MC4 MATEABLE
Efficiency:17.0 %
Pallet Size:OversizedÂ

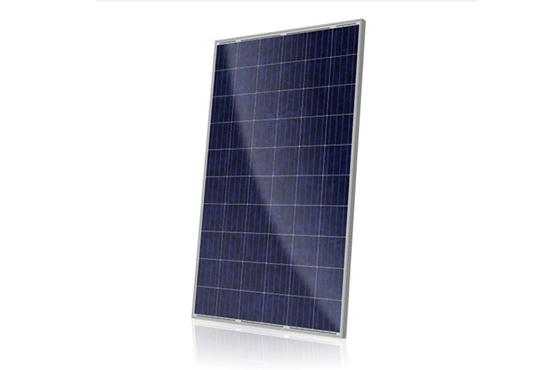

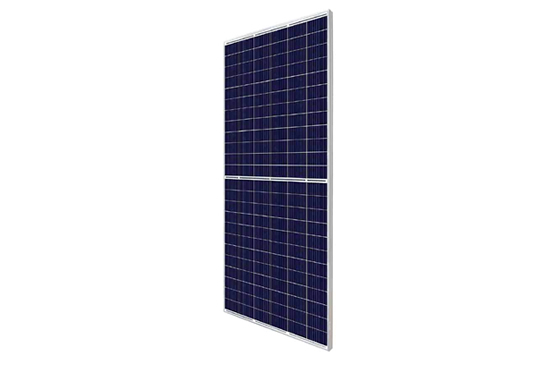

Canadian Solar 360W Poly KuMax Half-Cell 35mm Frame

Panels - Polycrystalline
Rating: 360W
Efficiency: 18.1%
Width: 992mm
Height: 2,000mm
Price per Watt: (R4,433/Wp)
This is the new 35mm frame thickness version of Canadian Solar Module.
Weight:22.5 kg
Rated Power:360 W
Length:2,000 mm
Width:992 mm
Depth:35 mm
VMPP:39.4 VIMPP:9.02 AVoc:46.8 V
Temp. Coefficient (Mpp):-0.37 %
Clamp position on panel: Long side only
Connector Type:CS-T4-PC-1-1000V Efficiency:18.1 %
Pallet Size:Oversized

JA Solar 335W Poly Large Wafer

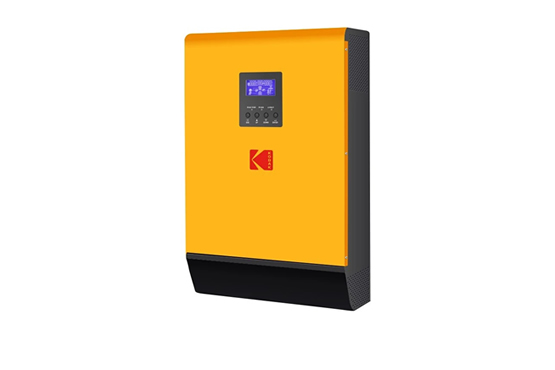

KODAK Solar Off-Grid Inverter
MKSII 5kW 48V

The OGX 5.48 is ideal for domestic projects, and can be scaled up to deliver high loads across up to 9 parallet units.
The high maximum DC input voltage makes DC string design simple and matches perfectly with Kodak's high performance Percium modules.
Consider adding the ICC Module for top-end remote monitoring of the installation and greater control over Pylontech batteries. Maximise your system.
Pure sine wave inverter
Output power factor 1
Built in high voltage range MPPT solar charge controller.
Selectable input voltage range for home appliances and personal computers.
Selectable charging current based on application.
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power.
Auto restart while AC is recovering.
Overload and short circuit protection.
Battery equalization for optimized battery performance and lifecyle.
Cold start function.
Built in parallel kit enabling parallel operation with up to 9 units.

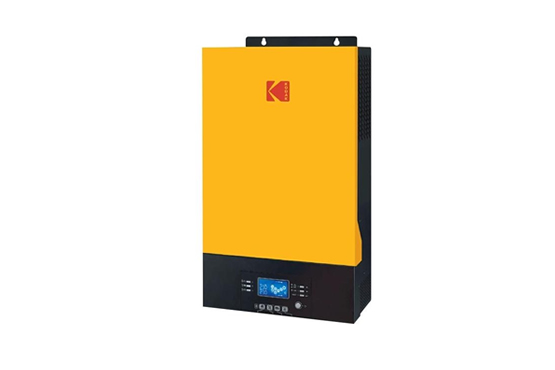

KODAK Solar Off-Grid Inverter King
with UPS

3KVA3KW 60A MPPT
(1500W max PV array) 24V

In rural or end-of-line locations, the AC grid voltage can fluctuate across a wide range. Voltage that is sufficiently far from the nominal 230V can cause appliances to run much less efficiently, or make them unable to function.
Most other inverters that are capable of running in Island Mode simply pass through the variable grid voltage and only produce a smooth 230V supply in the event of a grid failure.
Kodak's King Off-Grid inverter is perfect for areas where grid electricity is less stable because it produces smooth 230V AC at all times, whether the grid is available or not.
This is great for efficient running of applicances, but crucial for an uninterrupted supply for important loads such as servers or ATMs.
Operates at 24V, so an ideal match with the Pylon US2500 24V model.
Main Features:
Zero (0ms) transfer time, protects mission-critical loads servers, ATMs.
Detachable LCD control module with multiple communications.
Built-in Bluetooth for mobile monitoring (Android App is available)
Supports USB On-the-Go function
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Configurable ACPV output usage timer and prioritization.
Parallel operation up to 9 units.
Robust UPS (uninterrupted power supply) for essential loads.
Note The Kodak King inverter has a CAN-bus port included, which means a direct connection to Pylontech batteries is possible. Therefore no other control module, such as the ICC, is needed.

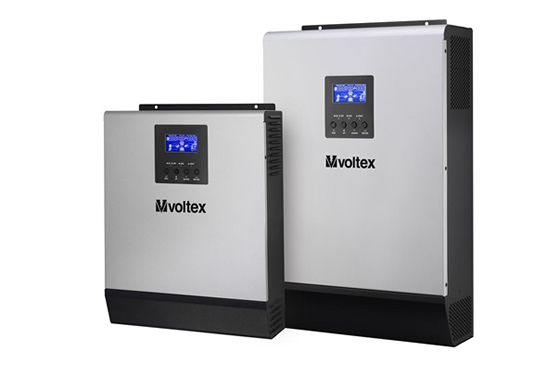

Axpert KS 1KVA1KW 50A PWM 12V Off-Grid Inverter

Main features
Pure sinewave inverter
Selectable input voltage range for home appliances and personal computers.
Selectable charging current based on applications.
Configurable ACSolar input priority via LCD display.
Compatible to AC mains or generator power.
Battery equalization for optimized battery performance and life-cycle.

Axpert KS 1KVA1KW 50A PWM 12V Off-Grid Inverter

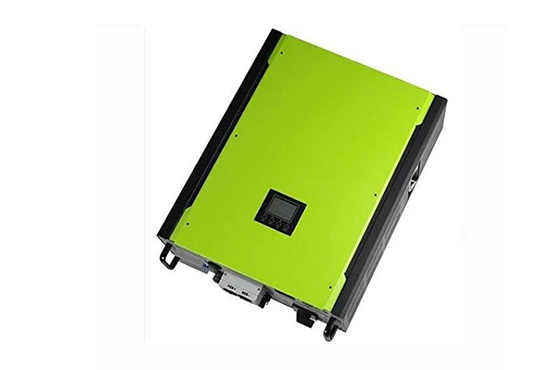

Mecer 10kW 3PH Hybrid PV inverter

Part No: VOL-INFINI-3P-10KW-48V Storage Systems - Hybrid Inverter
Hybrid Solar PV Inverter with multipleÂ programmable operating modes.

Pure sine wave AC output up to 10KW 3 Phase.
Self-consumption and feed-in excess energy into the grid.
Programmable power supply priority for either PV, Battery or Grid.
User-adjustable battery charging current suitable for different batteryÂ types. (Lead Acid or Li-ion).
Built-in timer for various modes of on/off operation.
Monitoring software for realtime status display and control. (Not web based)
Parallel operation of up to 6 units for both the 5KW inverter and 10KW inverter.
- Grid Fee

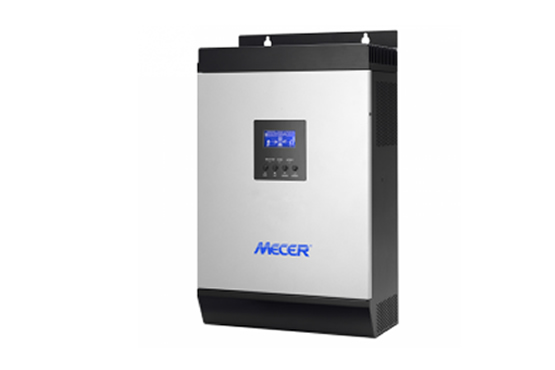

Mecer AXPERT 5000VA / 4000W 48V MKS PLUS Pure Sine Wave

Rated Power5000VA / 5000WÂ Maximum PV Array Power4000WM PPT Range @ Operating Voltage 60VDC~115VDC

Maximum PV Array Open Circuit Voltage 145VDC

Maximum Solar Charge Current 80A

Maximum AC Charge Current 60A

Maximum Charge Current 140A

Floating Charge Voltage 54VDCÂ

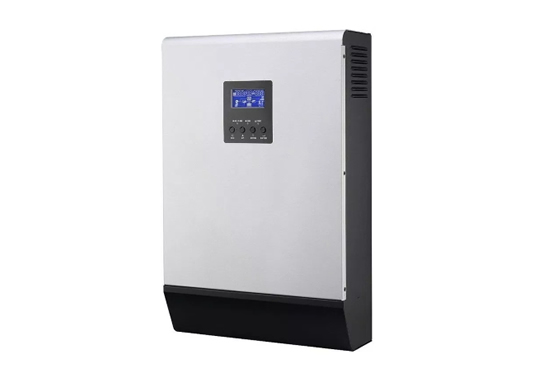

Mecer Axpert MKS Hybrid off-grid inverter 3kVA/3kW 600W 24V

Pure sine wave inverter

Output power factor 1

Built-in MPPT solar charge controller.
Selectable input voltage range for home appliances and personal computers.
Selectable charging current based on applications.
Configurable AC/Solar input priority via LCD setting. Compatible to mains voltage or generator power.
Auto restart while AC is recovering.
Overload and short circuit protection.

Mecer AXPERT 5000VA/5000W 48V MKS PLUS Pure Sine Wave

Rated Power 5000VA / 5000WÂ Maximum PV Array Power4000WMPPT Range @ Operating Voltage60VDC~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current60A
Maximum Charge Current 140A
Floating Charge Voltage 54VDC

Main Features:
Zero (0ms) transfer time, protects mission-critical loads: servers, ATMs.
Detachable LCD control module with multiple communications.
Built-in Bluetooth for mobile monitoring (Android App is available).
Supports USB On-the-Go function.
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Configurable AC/PV output usage timer and prioritization.
Optional parallel operation up to 9 units.

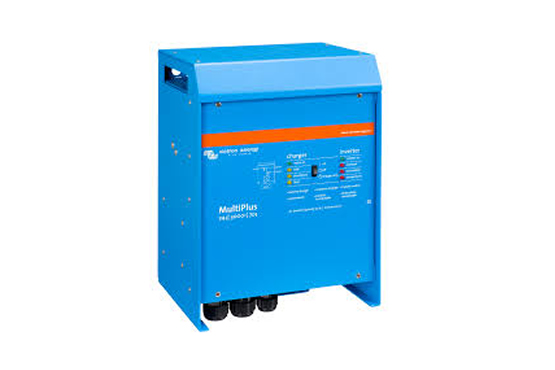

Victron MultiPlus 48/3000/ 35-50 2400W Inverter / Charger

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Available Models in this range:
800VA, 1200VA, 1600VA, 2000VA, 3000VA, 5000V

3000W Fixed Installation DC-AC Power Inverter, 12/230V

Anodized aluminum case provides durability &
max heat dissipation
Two LED indicators on the front panel shows
the working and failure state
ON/OFF switch control the inverter by hand
The inverter is compact, light weight and east
to operate.
Protections: overheat, overload, low-voltage
alarm & shutdown, over-voltage, short circuit,
reverse polarit.y
Soft start
Auto. Reset after being in protectedÂ

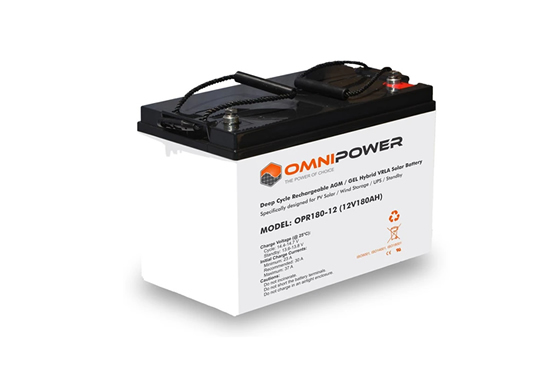

OMNIPOWER 180Ah 12V Sealed battery

Weight:45.5 kg
Battery Type:Lead Acid
Nominal Energy:1800 W/h
Depth of discharge:50.00 %
Voltage:12 V
Maximum Charge Rate:360 W
Maximum Discharge Rate:450 W

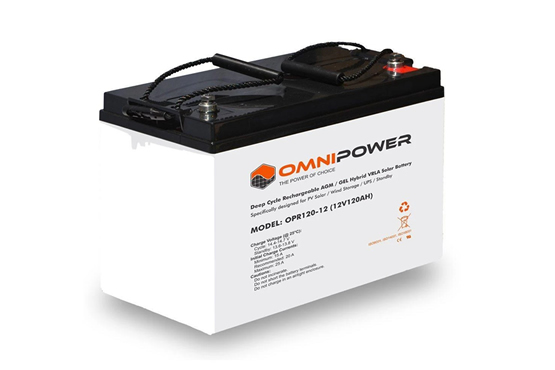

OMNIPOWER 120Ah 12V Sealed battery

Weight:30kg
Battery Type:Lead Acid
Nominal Energy:1200 W/h
Depth of discharge:50.00 %
Voltage:12 V
Maximum Charge Rate:240 W
Maximum Discharge Rate:300 W
